Level

Level probes

Hydrostatic level probes and smart level measurement options for water, wastewater, tanks, sumps, reservoirs, and pressure vessel applications.

Products Level Level probes

Specifications, ranges, materials, approvals, process connections, outputs, and accessories can be supplied according to project requirements.

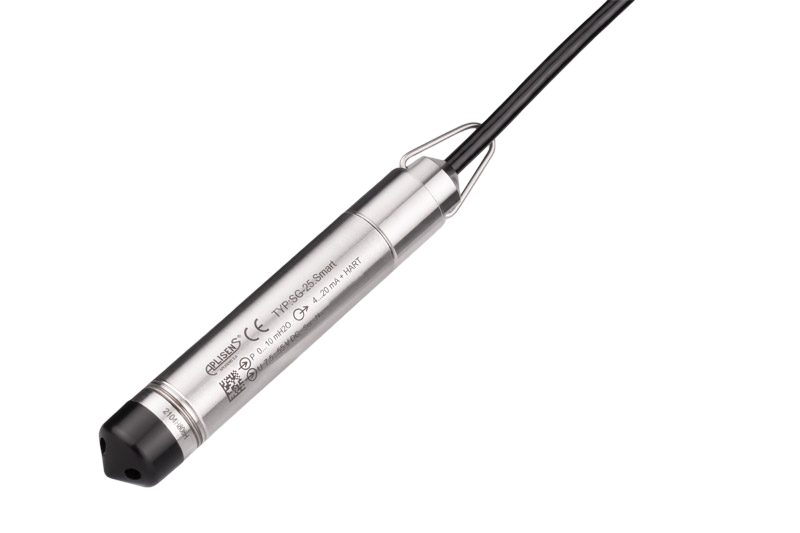

Hydrostatic level probe

Hydrostatic level probes

  • Continuous liquid level measurement for tanks, wells, reservoirs, sumps, and water storage applications.
  • Measurement ranges available from 1 m up to 500 m H2O depending on the application.
  • Waste-liquid versions available for wastewater, sewage, and utility level measurement duties.
  • Integrated internal overvoltage protection circuit for improved instrument protection.
  • Stainless steel and Hastelloy wetted-part options available for demanding media compatibility.
  • ATEX intrinsic safety and DNV marine-certified configurations available.
Get Quote
Smart hydrostatic level probe

Smart hydrostatic level probes

  • For level applications that need communication, configuration, local indication, or higher flexibility.
  • Smart options support 4-20 mA with HART protocol or RS485/Modbus RTU communication.
  • Programmable zero shift, measuring range, and damping ratio for easier commissioning and adjustment.
  • Accuracy options available down to 0.1% or 0.16% depending on probe type and application.
  • Special versions available for low-range level measurement, pressure tanks, and titanium wetted parts.
  • ATEX, IECEx, explosion-proof, and marine-certified configurations available depending on model and duty.
Get Quote
